CCNP Exam: IP Multicast Troubleshooting Guide

In preparation of our CCNP exam, we want to make sure we cover the various concepts that we could see on our Cisco CCNP exam. So to assist you, below we will discuss IP Multicast Troubleshooting Guide.

Introduction

This document describes common problems and solutions for IP multicast.

Prerequisites

Requirements

There are no specific requirements for this document.

Components Used

This document is not restricted to specific software and hardware versions.

Conventions

For more information on document conventions, refer to the Cisco Technical Tips Conventions.

Background Information

When troubleshooting multicast routing, the primary concern is the source address. Multicast has a concept of Reverse Path Forwarding check (RPF check). When a multicast packet arrives on an interface, the RPF process checks to ensure that this incoming interface is the outgoing interface used by unicast routing to reach the source of the multicast packet. This RPF check process prevents loops. Multicast routing does not forward a packet unless the source of the packet passes a reverse path forwarding (RPF) check. Once a packet passes this RPF check, multicast routing forwards the packet based only upon the destination address.

Like unicast routing, multicast routing has several available protocols, such as Protocol Independent Multicast dense mode (PIM-DM), PIM sparse mode (PIM-SM), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Border Gateway Protocol (MBGP), and Multicast Source Discovery Protocol (MSDP). The case studies in this document walk you through the process of troubleshooting various problems. You will see which commands are used to quickly pinpoint the problem and learn how to resolve it. The case studies listed here are generic across the protocols, except where noted.

Router Does Not Forward Multicast Packets to Host Due to RPF Failure

This section provides a solution to the common problem of an IP multicast Reverse Path Forwarding (RPF) failure. This network diagram is used as an example.

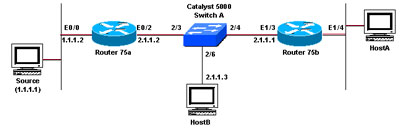

In the figure above, multicast packets come into E0/0 of Router 75a from a server whose IP address is 1.1.1.1 and sends to group 224.1.1.1. This is known as an (S,G) or (1.1.1.1, 224.1.1.1).

Diagnose the Problem

Hosts directly connected to Router 75a receive the multicast feed, but hosts directly connected to Router 72a do not. First, issue the show ip mroute 224.1.1.1 command to see what is going on with Router 75a. This command examines the multicast route (mroute) for the group address 224.1.1.1:
75a#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 00:01:23/00:02:59, RP 0.0.0.0, flags: D
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:01:23/00:00:00
(1.1.1.1, 224.1.1.1), 00:01:23/00:03:00, flags: TA
Incoming interface: Ethernet0/0, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:01:23/00:00:00

Since the router is running PIM dense mode (we know it is dense mode because of the D flag), ignore the *,G entry and focus on the S,G entry. This entry tells you that the multicast packets are sourced from a server whose address is 1.1.1.1, which sends to a multicast group of 224.1.1.1. The packets are coming in the Ethernet0/0 interface and are forwarded out the Ethernet0/1 interface. This is a perfect scenario.

Issue the show ip pim neighbor command to see whether Router 72a is showing the upstream router (75a) as a PIM neighbor:
ip22-72a#show ip pim neighbor
PIM Neighbor Table
Neighbor Address Interface Uptime Expires Ver Mode
2.1.1.1 Ethernet3/1 2d00h 00:01:15 v2

From the show ip pim neighbor command output, the PIM neighborship look good.

Use this show ip mroute command to see whether Router 72a has good mroute:
ip22-72a#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, B – Bidir Group, s – SSM Group, C – Connected,
L – Local, P – Pruned, R – RP-bit set, F – Register flag,
T – SPT-bit set, J – Join SPT, M – MSDP created entry,
X – Proxy Join Timer Running, A – Candidate for MSDP Advertisement,
U – URD, I – Received Source Specific Host Report, Z – Multicast Tunnel
Y – Joined MDT-data group, y – Sending to MDT-data group
Outgoing interface flags: H – Hardware switched, A – Assert winner
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 00:10:42/stopped, RP 0.0.0.0, flags: DC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet3/1, Forward/Dense, 00:10:42/00:00:00
Ethernet3/2, Forward/Dense, 00:10:42/00:00:00
(1.1.1.1, 224.1.1.1), 00:01:10/00:02:48, flags:
Incoming interface: Ethernet2/0, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet3/1, Forward/Dense, 00:01:10/00:00:00
Ethernet3/2, Forward/Dense, 00:00:16/00:00:00
ip22-72a#

You can see from the show ip mroute 224.1.1.1 command that the incoming interface is Ethernet2/0, while Etheret3/1 is expected.

Issue the show ip mroute 224.1.1.1 count command to see if any multicast traffic for this group arrives to the Router 72a and what happens next:
ip22-72a#show ip mroute 224.1.1.1 count
IP Multicast Statistics
3 routes using 2032 bytes of memory
2 groups, 0.50 average sources per group
Forwarding Counts: Pkt Count/Pkts per second/Avg
Pkt Size/Kilobits per second
Other counts: Total/RPF failed/Other drops(OIF-null,
rate-limit etc)
Group: 224.1.1.1, Source count: 1, Packets forwarded: 0, Packets received: 471
Source: 1.1.1.1/32, Forwarding: 0/0/0/0, Other: 471/471/0
ip22-72a#

You can see from the Other counts that traffic gets dropped due to RPF failure: total 471 drops, due to RPF failure  471&

Issue the show ip rpf command to see if there is an RPF error:
ip22-72a#show ip rpf 1.1.1.1
RPF information for ? (1.1.1.1)
RPF interface: Ethernet2/0
RPF neighbor: ? (0.0.0.0)
RPF route/mask: 1.1.1.1/32
RPF type: unicast (static)
RPF recursion count: 0
Doing distance-preferred lookups across tables
ip22-72a#

Cisco IOS® calculates the RPF interface in this way. Possible sources of RPF information are Unicast Routing Table, MBGP routing table, DVMRP routing table and Static Mroute table. When you calculate the RPF interface, primarily administrative distance is used to determine exactly which source of information the RPF calculation is based on. The specific rules are:

• All preceding sources of RPF data are searched for a match on the source IP address. When using Shared Trees, the RP address is used instead of the source address.
• If more than one matching route is found, the route with the lowest administrative distance is used.
• If the admin distances are equal, then this order of preference is used:

1. Static mroutes
2. DVMRP routes
3. MBGP routes
4. Unicast routes

• If multiple entries for a route occur within the same route table, the longest match route is used.

The show ip rpf 1.1.1.1 command output shows the RPF interface being E2/0, but the incoming interface should be E3/1.

Issue the show ip route 1.1.1.1 command to see why the RPF interface is different from what was expected.
ip22-72a#show ip route 1.1.1.1
Routing entry for 1.1.1.1/32
Known via "static", distance 1, metric 0 (connected)
Routing Descriptor Blocks:
* directly connected, via Ethernet2/0
Route metric is 0, traffic share count is 1

You can see from this show ip route 1.1.1.1 command output that there is a static /32 route, which makes the wrong interface to be chosen as RPF interface.

Issue some further debug commands:
ip22-72a#debug ip mpacket 224.1.1.1
*Jan 14 09:45:32.972: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 len 60, not RPF interface
*Jan 14 09:45:33.020: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 len 60, not RPF interface
*Jan 14 09:45:33.072: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 len 60, not RPF interface
*Jan 14 09:45:33.120: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 len 60, not RPF interface

The packets are coming in on E3/1, which is correct. However, they are being dropped because that is not the interface the unicast routing table uses for the RPF check.

Note: Debugging packets is dangerous. Pakcet debugging triggers process switching of the multicast pakcets, which is CPU intensive. Also, packet debugging can produce huge output which can hang the router completely due to slow output to the console port. Befor debugging packet, special care must be taken to disable logging output to the console, and enable logging to the memory buffer. In order to achieve this, configure no logging console and logging buffered debugging. The results of the debug can be seen with the show logging command.

Possible Fixes

You can either change the unicast routing table to satisfy this requirement or you can add a static mroute to force multicast to RPF out a particular interface, regardless of what the unicast routing table states. Add a static mroute:

ip22-72a(config)#ip mroute 1.1.1.1 255.255.255.255 2.1.1.1

This static mroute states that to get to the address 1.1.1.1, for RPF, use 2.1.1.1 as the next hop, which is out interface E3/1.
ip22-72a#show ip rpf 1.1.1.1
RPF information for ? (1.1.1.1)
RPF interface: Ethernet3/1
RPF neighbor: ? (2.1.1.1)
RPF route/mask: 1.1.1.1/32
RPF type: static mroute
RPF recursion count: 0

Doing distance-preferred lookups across tables

The output of show ip mroute and debug ip mpacket looks good, the number of sent packets in the show ip mroute count increases and HostA receives packets.
ip22-72a#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 00:01:15/00:02:59, RP 0.0.0.0, flags: DJC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet3/1, Forward/Sparse-Dense, 00:01:15/00:00:00
Ethernet3/2, Forward/Sparse-Dense, 00:00:58/00:00:00
(1.1.1.1, 224.1.1.1), 00:00:48/00:02:59, flags: CTA
Incoming interface: Ethernet3/1, RPF nbr 2.1.1.1, Mroute
Outgoing interface list:
Ethernet3/2, Forward/Sparse-Dense, 00:00:48/00:00:00
ip22-72a#show ip mroute 224.1.1.1 count
IP Multicast Statistics
3 routes using 2378 bytes of memory
2 groups, 0.50 average sources per group
Forwarding Counts: Pkt Count/Pkts per second/Avg Pkt Size/Kilobits per second
Other counts: Total/RPF failed/Other drops(OIF-null, rate-limit etc)
Group: 224.1.1.1, Source count: 1, Packets forwarded: 1019, Packets received: 1019
Source: 1.1.1.1/32, Forwarding: 1019/1/100/0, Other: 1019/0/0
ip22-72a#show ip mroute 224.1.1.1 count
IP Multicast Statistics
3 routes using 2378 bytes of memory
2 groups, 0.50 average sources per group
Forwarding Counts: Pkt Count/Pkts per second/Avg Pkt Size/Kilobits per second
Other counts: Total/RPF failed/Other drops(OIF-null, rate-limit etc)
Group: 224.1.1.1, Source count: 1, Packets forwarded: 1026, Packets received: 1026
Source: 1.1.1.1/32, Forwarding: 1026/1/100/0, Other: 1026/0/0
ip22-72a#
ip22-72a#debug ip mpacket 224.1.1.1
*Jan 14 10:18:29.951: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 (Ethernet3/2) len 60, mforward
*Jan 14 10:18:29.999: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 (Ethernet3/2) len 60, mforward
*Jan 14 10:18:30.051: IP: s=1.1.1.1 (Ethernet3/1)
d=224.1.1.1 (Ethernet3/2) len 60, mforward

Router Does Not Forward Multicast Packets to Host Due to TTL Setting of Source

This section provides a solution to the common problem of IP multicast packets not being forwarded because the Time To Live (TTL) value is decremented to zero. This is a common problem, as there are many multicast appplications. These multicast applications are designed primarily for the LAN usage, and thus set the TTL to a low value or even 1. Use this network diagram as an example.

Diagnose the Problem

In the figure above, Router A does not forward packets from source(S) to Router B's directly connected Receiver. Look at the output of the show ip mroute command on Router A to see the multicast routing state:
ROUTERA#show ip mroute
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.0.1.40), 00:00:01/00:00:00, RP 0.0.0.0, flags: DJCL
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:00:01/00:00:00
(*, 224.1.1.1), 00:00:02/00:02:57, RP 0.0.0.0, flags: D
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:00:02/00:00:00

You can ignore the 224.0.1.40 in the output above since all routers join this Auto-RP Discovery group. But there is no source listed for 224.1.1.1. In addition to "*, 224.1.1.1" you should see "1.1.1.1, 224.1.1.1".

Issue the show ip rpf command to see if it is a Reverse Path Forwarding (RPF) issue:
ROUTERA#show ip rpf 1.1.1.1
RPF information for ? (1.1.1.1)
RPF interface: Ethernet0/0
RPF neighbor: ? (0.0.0.0) – directly connected
RPF route/mask: 1.1.1.0/24
RPF type: unicast (connected)
RPF recursion count: 0
Doing distance-preferred lookups across tables

From the output above, you see that it is not an RPF issue. The RPF check correctly points out E0/0 to get to the source's IP address.

Check whether PIM is configured on the interfaces using the show ip pim interface command:
ROUTERA#show ip pim interface
Address Interface Version/Mode Nbr Query DR
Count Intvl
1.1.1.2 Ethernet0/0 v2/Sparse-Dense 0 30 1.1.1.2
2.1.1.1 Ethernet0/1 v2/Sparse-Dense 2 30 2.1.1.2

The output looks good, so this is not the problem. Check whether the router recognizes any active traffic using the show ip mroute active command:
ROUTERA#show ip mroute active
Active IP Multicast Sources – sending >= 4 kbps

Based on the output above, the router does not recognize any active traffic.
ROUTERA#debug ip mpacket
IP multicast packets debugging is on

Perhaps the Receiver is not sending any Internet Group Management Protocol (IGMP) reports (joins) for group 224.1.1.1. You can check it using the show ip igmp group command:
ROUTERB#show ip igmp group
IGMP Connected Group Membership
Group Address Interface Uptime Expires Last Reporter
224.0.1.40 Ethernet1/1 00:34:34 never 2.1.1.2
224.1.1.1 Ethernet1/2 00:30:02 00:02:45 3.1.1.2

224.1.1.1 has been joined on E1/2, which is fine.

PIM dense mode is a flood and prune protocol, so there are no joins, but there are grafts. Since Router B has not received a flood from Router A, it does not know where to send a graft.

You can check to see if it is a TTL issue with the sniffer capture and also seen with show ip traffic command:
ROUTERA#show ip traffic
IP statistics:
Rcvd: 248756 total, 1185 local destination
0 format errors, 0 checksum errors, 63744 bad hop count
0 unknown protocol, 0 not a gateway
0 security failures, 0 bad options, 0 with options

The output above shows 63744 bad hop counts. Each time you type this command, the bad hop count increases. This is a strong indication that the sender is sending packets with a TTL=1, which Router A decrements to zero. This results in an increase of the bad hop count field.

Possible Fixes

To solve the issue, you need to increase the TTL. This is done at the application level on the Sender. For more information, refer to your multicast application instruction manual.

Once this is done, Router A looks like this:
ROUTERA#show ip mroute
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.0.1.40), 01:16:32/00:00:00, RP 0.0.0.0, flags: DJCL
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 01:16:32/00:00:00
(*, 224.1.1.1), 00:28:42/00:02:59, RP 0.0.0.0, flags: D
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:28:42/00:00:00
(1.1.1.1, 224.1.1.1), 00:19:24/00:02:59, flags: TA
Incoming interface: Ethernet0/0, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:19:24/00:00:00

This is the sort of output you want to see.

On Router B you see:
ROUTERB#show ip mroute
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.0.1.40), 01:23:57/00:00:00, RP 0.0.0.0, flags: DJCL
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet1/1, Forward/Sparse-Dense, 01:23:57/00:00:00
(*, 224.1.1.1), 01:19:26/00:02:59, RP 0.0.0.0, flags: DJC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet1/1, Forward/Sparse-Dense, 01:19:26/00:00:00
Ethernet1/2, Forward/Sparse-Dense, 01:19:26/00:00:00
(1.1.1.1, 224.1.1.1), 00:17:46/00:02:59, flags: CTA
Incoming interface: Ethernet1/1, RPF nbr 2.1.1.1
Outgoing interface list:
Ethernet1/2, Forward/Sparse-Dense, 00:17:46/00:00:00

Router Does Not Forward Multicast Packets Due to TTL Threshold of Router

This section provides a solution to the common problem of the TTL threshold being set too low, so that IP multicast traffic does not reach the receiver. This network diagram is used as an example.

Diagnose the Problem

In the figure above, the Receiver does not receive multicast packets from the Source. There may be several routers between the source and Router 75a. First look at Router 75a, since it is directly connected to the Receiver.
ip22-75a#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 00:32:05/00:02:59, RP 0.0.0.0, flags: DJC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:08:17/00:00:00
(1.1.1.1, 224.1.1.1), 00:01:02/00:01:57, flags: CTA
Incoming interface: Ethernet0/0, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet0/1, Forward/Sparse-Dense, 00:01:02/00:00:00

The output above shows Router 75a is forwarding packets out Ethernet0/1. To be absolutely sure Router 75a is forwarding the packets, turn on debug just for this source and multicast group:
ip22-75a#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
ip22-75a(config)#access-list 101 permit udp host 1.1.1.1 host 224.1.1.1
ip22-75a(config)#end
ip22-75a#debug ip mpacket 101
IP multicast packets debugging is on for access list 101
ip22-75a#
*Jan 17 09:04:08.714: IP: s=1.1.1.1 (Ethernet0/0) d=224.1.1.1 len 60, threshold denied
*Jan 17 09:04:08.762: IP: s=1.1.1.1 (Ethernet0/0) d=224.1.1.1 len 60, threshold denied
*Jan 17 09:04:08.814: IP: s=1.1.1.1 (Ethernet0/0) d=224.1.1.1 len 60, threshold denied

The above debug messages indicate that Router 75a does not forward the multicast packets because the TTL threshold has been reached. Look at the router configuration to see whether you can find the reason. This output shows the culprit:
interface Ethernet0/1
ip address 2.1.1.1 255.255.255.0
ip pim sparse-dense-mode
ip multicast ttl-threshold 15

The router has a TTL threshold of 15, but this does not mean that anything greater than a TTL of 15 is not sent. Actually, the opposite is true. The application is being sent with a TTL of 15. By the time it gets to Router 75a, the multicast packets have a TTL less than 15.

The ip multicast ttl-threshold command means that any packets with a TTL lower than the specified threshold, in this case, 15, are not forwarded. This command is usually used to provide a border to keep internal multicast traffic from drifting out of the intranet.

Possible Fixes

Either remove the ip multicast ttl-threshold command by using the no form of this command, which reverts to the default TTL threshold value of 0, or lower the TTL threshold so that the traffic can pass.

Multiple Equal Cost Paths Result in Unwanted Return Path Forwarding Behavior

This sections shows how equal cost paths to a multicast source can cause unwanted Return Path Forwarding (RPF) behavior. It also describes how to configure IP multicast to avoid this behavior. This network diagram is used as an example.

Diagnose the Problem

In the figure above, Router 75b has three equal cost paths back to the Source (1.1.1.1), and it chooses a link that you do not want to be its first choice as the RPF link.

When faced with multiple equal cost paths to a source, IP multicast chooses the interface that has a Protocol Independent Multicast (PIM) neighbor with the highest IP address as the incoming interface and then sends prunes to PIM neighbors on the other links.

Possible Fixes

To change the interface IP multicast chooses as its incoming interface, you can do one of these:

• Only configure PIM on the interfaces that you want multicast to traverse, which means you lose multicast redundancy.
• Change the subnets so the highest IP address is on the link you want to be the primary multicast link.
• Create a static multicast route (mroute) pointing out the preferred multicast interface, which means you lose multicast redundancy.

As an example, a static mroute is created.

Before installing a static mroute, you see in the output below that the routing table has three equal cost routes for the source address 1.1.1.1. The RPF information indicates that the RPF interface is E1/3:
ip22-75b#show ip route 1.1.1.1
Routing entry for 1.1.1.0/24
Known via "ospf 1", distance 110, metric 20, type intra area
Redistributing via ospf 1
Last update from 3.1.1.1 on Ethernet1/2, 00:26:21 ago
Routing Descriptor Blocks:
* 4.1.1.1, from 10.0.119.66, 00:26:21 ago, via Ethernet1/3
Route metric is 20, traffic share count is 1
2.1.1.1, from 10.0.119.66, 00:26:21 ago, via Ethernet1/1
Route metric is 20, traffic share count is 1
3.1.1.1, from 10.0.119.66, 00:26:21 ago, via Ethernet1/2
Route metric is 20, traffic share count is 1
ip22-75b#show ip rpf 1.1.1.1
RPF information for ? (1.1.1.1)
RPF interface: Ethernet1/3
RPF neighbor: ? (4.1.1.1)
RPF route/mask: 1.1.1.0/24
RPF type: unicast (ospf 1)
RPF recursion count: 0
Doing distance-preferred lookups across tables
ip22-75b#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 01:30:34/00:02:59, RP 0.0.0.0, flags: DJC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet1/4, Forward/Sparse-Dense, 01:30:34/00:00:00
Ethernet1/1, Forward/Sparse-Dense, 01:30:35/00:00:00
Ethernet1/2, Forward/Sparse-Dense, 01:30:35/00:00:00
Ethernet1/3, Forward/Sparse-Dense, 00:24:22/00:00:00
(1.1.1.1, 224.1.1.1), 01:30:35/00:02:59, flags: CT
Incoming interface: Ethernet1/3, RPF nbr 4.1.1.1
Outgoing interface list:
Ethernet1/1, Prune/Sparse-Dense, 01:30:35/00:02:32
Ethernet1/4, Forward/Sparse-Dense, 01:30:35/00:00:00
Ethernet1/2, Prune/Sparse-Dense, 00:24:22/00:02:42

After configuring the static mroute, you see in this output the RPF interface has changed to E1/1:
ip22-75b#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
ip22-75b(config)#ip mroute 0.0.0.0 0.0.0.0 2.1.1.1
ip22-75b(config)#end
ip22-75b#show ip rpf 1.1.1.1
RPF information for ? (1.1.1.1)
RPF interface: Ethernet1/1
RPF neighbor: ? (2.1.1.1)
RPF route/mask: 1.1.1.1/0
RPF type: static mroute
RPF recursion count: 0
Doing distance-preferred lookups across tables
ip22-75b#show ip route 1.1.1.1
Routing entry for 1.1.1.0/24
Known via "ospf 1", distance 110, metric 20, type intra area
Redistributing via ospf 1
Last update from 3.1.1.1 on Ethernet1/2, 00:26:21 ago
Routing Descriptor Blocks:
* 4.1.1.1, from 10.0.119.66, 00:26:21 ago, via Ethernet1/3
Route metric is 20, traffic share count is 1
2.1.1.1, from 10.0.119.66, 00:26:21 ago, via Ethernet1/1
Route metric is 20, traffic share count is 1
3.1.1.1, from 10.0.119.66, 00:26:21 ago, via Ethernet1/2
Route metric is 20, traffic share count is 1
ip22-75b#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 01:31:29/00:02:59, RP 0.0.0.0, flags: DJC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Ethernet1/4, Forward/Sparse-Dense, 01:31:29/00:00:00
Ethernet1/1, Forward/Sparse-Dense, 01:31:30/00:00:00
Ethernet1/2, Forward/Sparse-Dense, 01:31:30/00:00:00
Ethernet1/3, Forward/Sparse-Dense, 00:25:17/00:00:00
(1.1.1.1, 224.1.1.1), 01:31:30/00:02:59, flags: CT
Incoming interface: Ethernet1/1, RPF nbr 2.1.1.1, Mroute
Outgoing interface list:
Ethernet1/4, Forward/Sparse-Dense, 01:31:30/00:00:00
Ethernet1/2, Prune/Sparse-Dense, 00:25:17/00:01:47
Ethernet1/3, Prune/Sparse-Dense, 00:00:31/00:02:28

Why Does IP Multicast Not Load Balance Across All Available Equal Cost Paths?

This section provides a solution to the common problem of configuring IP multicast to load balance across all available equal-cost paths. This network diagram is used as an example.

In the figure above, Router 75b has three equal-cost paths back to the Source (1.1.1.1). You want to load-balance the multicast traffic across all three links.

Possible Fixes

As you saw in the Multiple Equal Cost Paths Result in Unwanted Return Path Forwarding Behavior section above, Protocol Independent Multicast (PIM) only chooses one interface for the Return Path Forwarding (RPF) check and prunes the others. This means load balancing does not occur. In order to load-balance, you need to remove PIM from the redundant links and create a tunnel between Router 75a and Router 75b. You can then load-balance at the link level, and IP runs over the tunnel.

These are the configurations for the tunnel.

After you configure the tunnel, use the show ip mroute command to see the multicast route (mroute) for the group:
ip22-75a#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 02:40:31/00:02:59, RP 0.0.0.0, flags: D
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Tunnel0, Forward/Sparse-Dense, 00:20:55/00:00:00
(1.1.1.1, 224.1.1.1), 02:40:32/00:03:29, flags: TA
Incoming interface: Ethernet0/0, RPF nbr 0.0.0.0
Outgoing interface list:
Tunnel0, Forward/Sparse-Dense, 00:20:55/00:00:00
ip22-75b#show ip mroute 224.1.1.1
IP Multicast Routing Table
Flags: D – Dense, S – Sparse, C – Connected, L – Local, P – Pruned
R – RP-bit set, F – Register flag, T – SPT-bit set, J – Join SPT
M – MSDP created entry, X – Proxy Join Timer Running
A – Advertised via MSDP
Timers: Uptime/Expires
Interface state: Interface, Next-Hop or VCD, State/Mode
(*, 224.1.1.1), 02:42:20/00:02:59, RP 0.0.0.0, flags: DJC
Incoming interface: Null, RPF nbr 0.0.0.0
Outgoing interface list:
Tunnel0, Forward/Sparse-Dense, 00:22:53/00:00:00
Ethernet1/4, Forward/Sparse-Dense, 02:42:20/00:00:00
(1.1.1.1, 224.1.1.1), 00:22:53/00:02:59, flags: CT
Incoming interface: Tunnel0, RPF nbr 6.1.1.1, Mroute
Outgoing interface list:
Ethernet1/4, Forward/Sparse-Dense, 00:22:53/00:00:00

To check that the multicast data is being load balanced equally across the three links, look at the interface data of Router 75a.

The incoming interface is 9000 bits/sec:
ip22-75a#show interface e0/0
5 minute input rate 9000 bits/sec, 20 packets/sec

The three outgoing interfaces each show 3000 bits/sec:
ip22-75a#show interface e0/1
5 minute output rate 3000 bits/sec, 7 packets/sec
ip22-75a#show interface e0/2
5 minute output rate 3000 bits/sec, 7 packets/sec
ip22-75a#show interface e0/3
5 minute output rate 3000 bits/sec, 7 packets/sec

Why Are We Receiving IP Multicast "INVALID_RP_JOIN" Error Messages on the Router?

This section provides solutions to the common problem of the IP multicast "INVALID_RP_JOIN" error message.

Diagnose the Problem – Part 1

This error messages is received on the Rendezvous Point (RP):
00:55:15: %PIM-6-INVALID_RP_JOIN: Received (*, 224.1.1.1)
Join from 1.1.6.2 for invalid RP 1.1.5.4
00:56:15: %PIM-6-INVALID_RP_JOIN: Received (*, 224.1.1.1)
Join from 1.1.6.2 for invalid RP 1.1.5.4

The Cisco IOS Software System Error Messages explains what causes this error: a downstream PIM router sent a join message for the shared tree, which this router does not want to accept. This behavior indicates that this router allows only downstream routers join to a specific RP.

It is suspected that some kind of filtering is going on. You need to take a look at the configuration of the router:
interface Ethernet0/0
ip address 1.1.5.4 255.255.255.0
ip pim sparse-dense-mode
! ip pim accept-rp 10.2.2.2 8
ip pim send-rp-announce Ethernet0/0 scope 15
ip pim send-rp-discovery scope 15
! access-list 8 permit 224.0.0.0 0.255.255.255

What is the accept-rp statement in the configuration supposed to accomplish? CCO Documentation states that "to configure a router to accept Joins or Prunes destined for a specified RP and for a specific list of groups, use the ip pim accept-rp global configuration command. To remove that check, use the no form of this command."

When you remove the ip pim accept-rp command, the messages disappear. The command that is causing the problem was found, but what if you want to keep that command in the configuration? You may be permitting the wrong RP address. Using the show ip pim rp mapping command, you can see the correct RP address:
ip22-75a#show ip pim rp mapping
PIM Group-to-RP Mappings
This system is an RP (Auto-RP)
This system is an RP-mapping agent
Group(s) 224.0.0.0/4
RP 1.1.5.4 (?), v2v1
Info source: 1.1.5.4 (?), via Auto-RP
Uptime: 01:00:48, expires: 00:02:07

According to the output above, 1.1.5.4 is the only RP learned via Auto-RP or otherwise. However, this router is only the RP for the groups 224.0.0.0/4. So, the pim accept-rp statement in the configuration above is wrong.

Possible Fixes

The solution is to correct the IP address in the ip pim accept-rp statement as follows:

Change this statement:

ip pim accept-rp 10.2.2.2 8

To the following:
ip pim accept-rp 1.1.5.4 8

You can also change the statement to accept what is in the auto-rp cache, and make certain that the access list (8 in this example) is permitting the necessary multicast group range. This is an example:
ip pim accept-rp auto-rp
access-list 8 permit 224.0.0.0 0.255.255.255

Diagnose the Problem – Part 2

This error message is seen on router2.
router2#
*Aug 12 15:18:17.891:
%PIM-6-INVALID_RP_JOIN: Received (*, 224.0.1.40)
Join from 0.0.0.0 for invalid RP 2.1.1.1

Check to see if router2 is the RP for group 224.1.1.1:
router2#show ip pim rp map
PIM Group-to-RP Mappings
Group(s) 224.0.0.0/4
RP 1.1.1.1 (?), v2v1
Info source: 1.1.1.1 (?), elected via Auto-RP
Uptime: 00:21:26, expires: 00:02:24
router2#

The RP for 224.1.1.1 is 1.1.1.1.

Check if this is one of the interfaces of router2:

router2#show ip interface brief
Interface IP-Address OK? Method Status Protocol
Ethernet0/0 1.1.1.2 YES NVRAM up up
Ethernet1/0 2.1.1.1 YES NVRAM up up
Ethernet2/0 unassigned YES NVRAM administratively down down
router2#

Since router2 is not an RP, it should have not received this RP-Join packet. Check why the downstream router sent the Join to router2, while it should not:
router3#show ip pim rp map
PIM Group-to-RP Mappings
Group(s) 224.0.0.0/4
RP 1.1.1.1 (?), v2v1
Info source: 1.1.1.1 (?), elected via Auto-RP
Uptime: 00:24:30, expires: 00:02:16
Group(s): 224.0.0.0/4, Static-Override
RP: 2.1.1.1 (?)
router3#

As you see, router3 has statically configured RP information, pointing to router2, which is incorrect. This explains why router3 is sending RP-Join to router2.

Possible Fixes

Either make router2 the RP for the group 224.1.1.1 or change the configuration on router3 so it refers to the correct RP address.
router3#show run | i rp
ip pim rp-address 2.1.1.1 override
router3#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
router3(config)#no ip pim rp-address 2.1.1.1 override
router3(config)#exit
router3#

After the configuration on router3 is corrected, router3 refers to the correct RP address and the error message stops appearing.
router3#show ip pim rp map
PIM Group-to-RP Mappings
Group(s) 224.0.0.0/4
RP 1.1.1.1 (?), v2v1
Info source: 1.1.1.1 (?), elected via Auto-RP
Uptime: 00:30:45, expires: 00:02:02
router3#

CGMP Does Not Prevent the Flood of Multicast Packets

This section explains how unwanted flooding of multicast packets can occur when Cisco Group Management Protocol (CGMP) is not enabled on all routers on a particular subnet, and how this problem can be avoided.

This network diagram is used as an example.

Diagnose the Problem

In the figure above, the static CAM table in the Catalyst 5000 Switch A does not show any of the correct ports that are populated. The CGMP-configured router does not send CGMP packets.

CGMP is correctly configured with the set cgmp enable command on Switch A and the ip cgmp command on the E0/2 interface of Router 75a. However no multicast groups are seen on Switch A when the show multicast group command is issued:
Console> (enable) show multicast group
CGMP enabled
IGMP disabled
IGMP fastleave disabled
GMRP disabled
VLAN Dest MAC/Route Des
